Rida Combo 4G+GPS Antenna for Vehicle application

Supply Ability : 400000pcs per month

Connectivity : as requirement

Brand Name : RIDA Antennaer

VSWR : <1.5

LNA Gain : 28dBi

Impedance : 50Ω

MOQ : 20

Place of Origin : Guangdong, China

Frequency : GPS GLONASS BEIDOU 4G 5G WIFI

Cable Length : 3M(Customizable)

Model Number : RG00110B

Packaging Details : opp bag single pcs

Polarity : vertical

Service : OEM/ODM

Delivery Time : 10-15days

Material : PC

Certification : ISO9001/IATF16949

Type : GPS/GNSS Antenna

Contact Now

Products Description

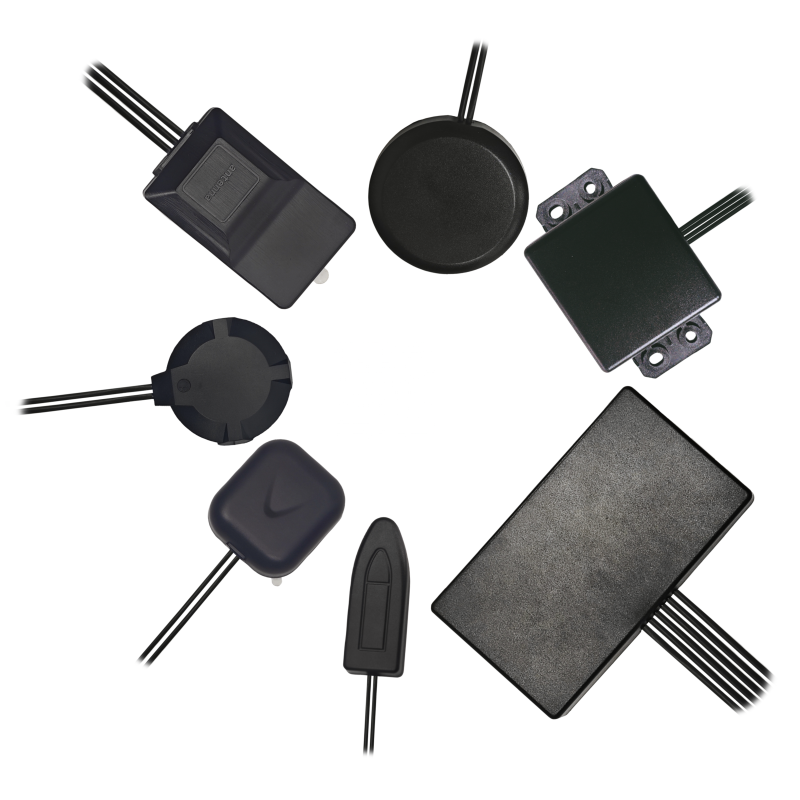

Rida Combo 4G+GPS Antenna for Vehicle application
Rida Combo 4G+GPS Antenna for Vehicle application
Rida Combo 4G+GPS Antenna for Vehicle application

Waterproof, corrosion and high temperature resistance tests, comprehensive quality inspection reports. Ensure the normal use of the product in various environments.
(For more test reports, please contact)

Product Parameters
GNSS specifications

Center Frequency *
1575.42MHz±3 MHz / 1561MHz / 1602MHz
V.S.W.R
<1.5
Band Width
±5 MHz
Attenuation
fo±100MHz>30dB
Impendence
50 Ω
Peak Gain
>3dBic, Based on 7×7cm ground plane
Gain Coverage
>-4dBic at –90°<0<+90°(over 75% Volume)
Polarization
Right-handed Circular(RHCP)
LNA Gain(Without cable) *
28dBi
Noise Figure
1.5dB
V.S.W.R
<1.65
DC Voltage
2.7V-5.0V±0.5V
DC current
15mA Max(5V DC)
2G/3G/4G/5G specifications

Frequency Range *
600-6000MHz
V.S.W.R
<1.5
Band Width
±90/280 MHz
Gain *
3.0dBi
Polarization
Vertical
Radiation
Omni directional
Max Input power(W)
50 W
Impendence
50 Ω
2.4/5.8Ghz WIFI specifications

Frequency Range *
2300-2500/5700-5900MHZ
V.S.W.R
<1.5
Band Width
±100 MHz
Gain *
3.0dBi
Polarization
Vertical
Radiation
Omni directional
Max Input power(W)
50 W
Impendence
50 Ω
