GPS Receiving G-mouse Module 28dBi Gain IP65/IP67 RIDA Antennaer

Name: GPS Receiving Gmouse Module 28dBi Gain IP65IP67 RIDA Antennaer
Brand: RIDA Antennaer
Price: 1 USD

Buy cheap GPS Receiving G-mouse Module 28dBi Gain IP65/IP67 RIDA Antennaer product

VSWR : <1.5

Mounting Method : Adhesive or Magnetic

Model Number : RG00410B

Packaging Details : opp bag single pcs

Gain : 28dBi

IP Rank : IP65/IP67

Supply Ability : 400000pcs per month

Name : GPS Antenna

Brand Name : RIDA Antennaer

Protocol : TTL or RS232 or others

Cable Length : 1000mm

Connector : TRS or USB or others

Place of Origin : Guangdong, China

MOQ : 10

Delivery Time : 10-15days

Frequency : 1575.42Mhz

Certification : ISO9001/IATF16949

Type : GPS/GNSS Antenna

Contact Now

RX TX GND VCC 4 pin 3 pin RS232 RS485 RS422 TTL 1575.42MHz GPS Receiving Antenna G-mouse Module Antenna Customization scope:Antenna performance, Appearance, Cable length, Connector type

Products Description

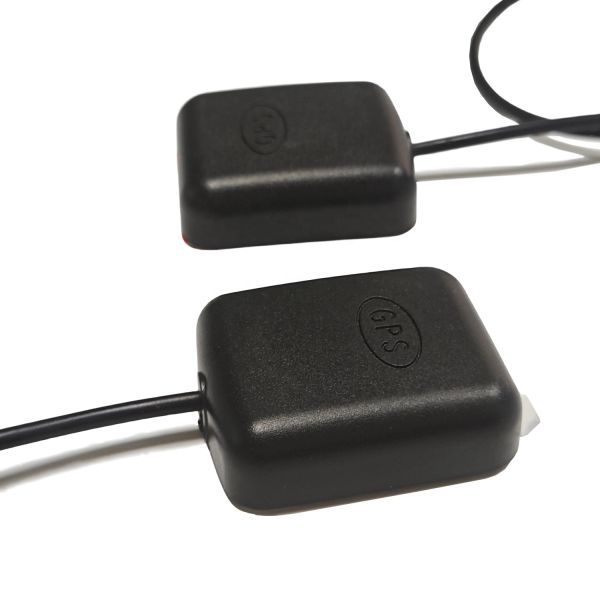

GPS Receiving G-mouse Module 28dBi Gain IP65/IP67 RIDA Antennaer

Product Description

The HTGNSS HT-268M7Series with embedded GPS antenna enables high performance navigation in the most stringent applications and solid fix even in harsh GPS visibility environments.

It is based on the high performance features of the MediaTek single-chip architecture, Its–165dBm tracking sensitivity extends positioning coverage into place like urban canyons and dense foliage environment where the GPS was not possible before. The connector design is the easiest and convenient solution to communication with other electronic equipment.

Product Application

• Handheld GPS receiver application

• Ideal for PDA, Pocket PC

• Geographic Surveying

• Sports and Recreation

• Marine Navigation,Fleet Management

• Automotive application

• Car navigation and tracking

• AVL andLocation-Based Services

• Timing application

• UAV

Features

• Ultra high sensitivity:-165dBm

• 22tracking/66 acquisition-channel receiver

• WAAS/EGNOS/MSAS/GAGAN support

• NMEAprotocols(default: 9600bps)

• Internal back-up battery

• Embeddedpatchantenna 25x25x4.0mm

• Operating temperature range:-40 to 85℃

• RoHScompliance(Lead-free)

• Tinyform factor :45.5* 38.5 * 14.5mm

We also have a 3 PIN version

Product Parameters & Customizable Range

Frequency range(MHz)	1575.42MHz
Impedance	50Ω
V.S.W.R	≤1.5
Gain	28 dBi
Polarization type	R.H.C.H
Power Capacity	50W
Connector	TRS/USB or others
Radome Color	Black
Radome Material	ABS
Cable length	1000mm
Voltage	DC 3.3-5.0V
Working Temp(°C)	-40°C~+85°C

GPS Receiving G-mouse Module 28dBi Gain IP65/IP67 RIDA Antennaer Images
