GNSS Antenna for Precise GPS GLONASS Galileo Navigation RTK Compass in Agriculture Deformation ROHS Certified

Name: GNSS Antenna for Precise GPS GLONASS Galileo Navigation RTK Compass in Agriculture Deformation ROHS Certified
Brand: RIDA Antennaer
Price: 1 USD

Buy cheap GNSS Antenna for Precise GPS GLONASS Galileo Navigation RTK Compass in Agriculture Deformation ROHS Certified product

Connector : TNC or Customized

Supported positioning signal bands : GPS:L1/L2/L5; BDS:B1/B2/B3; GLONASS:G1/G2/G3; Galileo:El/E5a/E5b/E6

Service : OEM/ODM

Type : GPS/GNSS Antenna

Delivery Time : 10-15days

VSWR : <2

Place of Origin : Guangdong, China

Phase-center repeatability : ≤1.0mm

Model Number : RDYLC-1

Supply Ability : 400000pcs per month

MOQ : 5

Frequency Range : 1166MHz-1278MHz, 1521MHz-1608MHz

Certification : ISO9001/IATF16949

Brand Name : RIDA Antennaer

Gain : 40±2dB

Packaging Details : opp bag single pcs

Impedance : 50Ω

Contact Now

Products Description

RTK Antenna

GNSS Antenna for Precise GPS GLONASS Galileo Navigation RTK Compass in Agriculture Deformation ROHS Certified

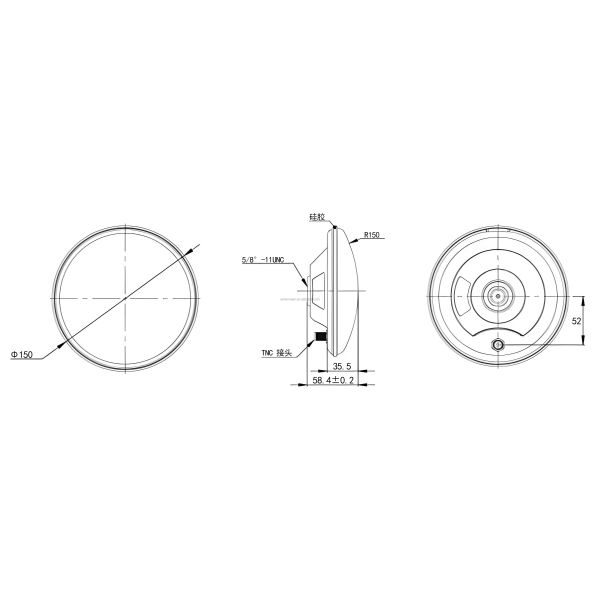

Structural Dimensions & Performance Diagrams

( Accept OEM/ODM)

Product Parameters & Customizable Range

ANTENNA
Patch Architecture	Dual Four-point-feed
Supported positioning signal bands	GPS:L1, L2, L5; QZSS: L1, L2, L5, L6
		BDS: B1A, B1I, B1C, B2I, B2a, B2b, B3A, B3AE, B3Q;
		GLONASS:G1, G2, G3; ABAS: L1, L5
		Galileo:El, E5a, E5b, E6;
Peak Gain*	≥5.0dBi@Fc
Polarization	RHCP
Axial Ratio@zenith	≤ 1.5dB
Azimuth Coverage	360°
Impedance	50 ohm
Phase-center accuracy	≤2.0mm
Phase-center repeatability	≤ 1.0mm
LNA
Frequency Range	1166MHz-1278MHz
Frequency Range		1521MHz-1608MHz
LNA Gain*	40±2.0dB (Typ. @25°C)
Group Delay variation	≤ 15ns
Noise Figure*	≤2 0 dB@25°C , Typ (Pre-filtered)
Output VSWR	≤ 1.8:1 typ. 2.0:1max
Operation Voltage	3.0~ 16V DC
Operation Current	≈45mA
MECHANICALS & ENVIRONMENTAL
Dimension	Φ150mm*58.4mm
Connector	TNC ( Female)
Radome	PC+PBT
Weight	≈450g
Operating Temp	－40℃~＋85℃
Storage Temp	－45℃~＋85℃
Humidity	95% No-condensing
Waterproof	IP67

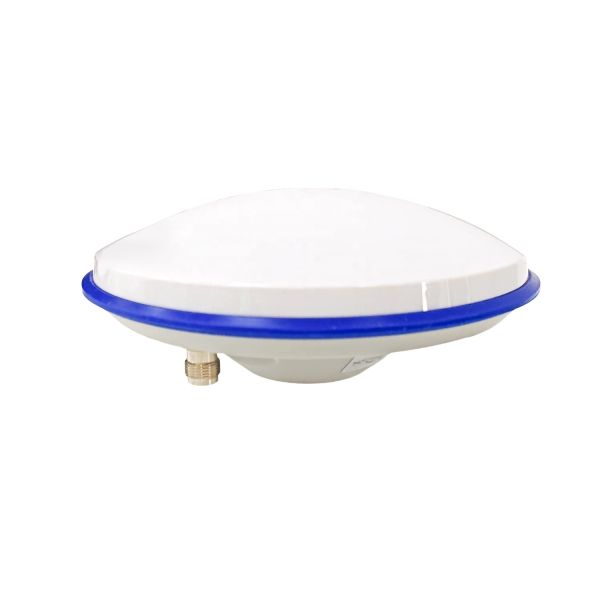

GNSS Antenna for Precise GPS GLONASS Galileo Navigation RTK Compass in Agriculture Deformation ROHS Certified Images
